Crystal Cove Swims
HPS-1634
Seat Capacity: 4
Jets: 32
Rip Current Jet: 2
Size: 93" x 200" x 51"
*Crystal Cove Spas™ reserves the right to enhance, modify or
discontinue products at any time without notice. Specifications
may change without notice. Dimensions are approximate.

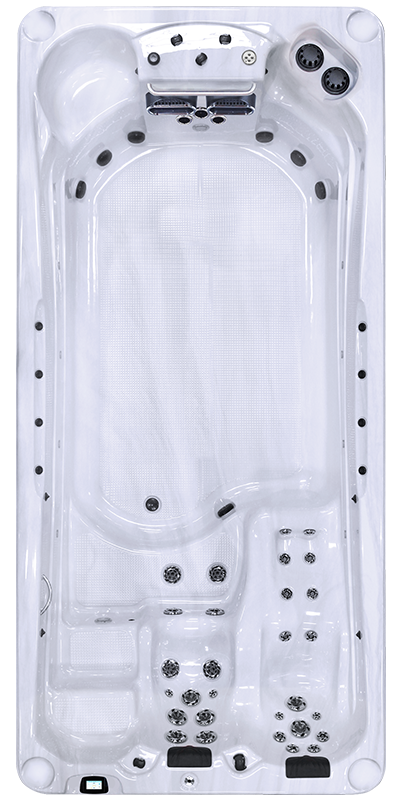

About the HPS-1634
This is our most popular model under our Fitness Swim Spas line, but taken to the next level with our Swim Spas features. The HPS-1634 allows endless swimming at beginner to advanced levels. While you enjoy the standard features such as two river jets with on/off air control valves and jets placed at foot level for maximum relaxation, you also get the added touch of our Elite cabinet panels.
- LED Spa Lighting
- Dual Ozonators with Mazzei Injectors and Mixing Chambers
- Swim Spa Jet System: II and V
- LED Hydro-Streamers
- Swim Jet Pump Including 2.5" Plumbing and Hi Flow Main Drains
- Bio-Clean Filter™ with TeleWeir
- Pressure Treated Cabinet Frame
| # | SPECIFICATIONS | VALUE |
|---|---|---|
| 1 | Seating Capacity | 4 |
| 2 | Shell Colors | Sterling Silver |
| 3 | Dimensions - (W x L x H) | 93" x 200" x 51" |
| 4 | Dry Weight - Lbs. (Kilograms) | 2,000 (907 kg) |
| 5 | Filled Weight - Lbs. (Kilograms) | 22,825 (10,353 kg) |
| 6 | Water Capacity - Gal. (Liters) | 2,500 (9,463 L) |
| 7 |
Eliminator High Performance ™ Pump HD Power Frame Pump(s) |
1 x 6.0 BHP |
| 8 | Swim Jet Pump Including 2.5" Plumbing and Hi Flow Main Drains | 3 x 6.0 BHP |
| 9 | Operating Voltage | 240V |
| 10 | LED Hydro-Streamers | Yes |
| 11 | Stainless Steel Jets | 23 |
| 12 | Swim Spa Jet System: II and V |
5 Swim Jet System 2 Rip Current Jet 3 Power Storm Jets |
| 13 | Stainless Steel Exercise Bar | 27" |
| 14 | Fitness Anchors | Yes |
| 15 | Tether Anchor | Yes |
| 16 | Textured Pillows | Cascade-Pillow |
| 17 | Gate Valve(s) | Yes |
| 18 | Dual Ozonators with Mazzei Injectors and Mixing Chambers | Yes |
| 19 | Bio-Clean Filter™ with TeleWeir |
100 Sq. Ft. (2 x 50 Sq. Ft.) |
| 20 | LED Spa Lighting | Multi Colored LED 1 x 5" |
| 21 |
Whisper Power Unit™ Equipment with Full Color LCD Display |
BP20X Touch Controls Black w/ auxiliary control Panel |
| 22 |
Thermo-Shield™ Insulation Side Panels and Thermo-Layer Floor with ABS Liner |
Yes |
| 23 | Heating System | 5.5 kW Titanium |
| 24 | Pressure Treated Cabinet Frame | Yes |
| 25 | Cabinet Panel: Smoke or Mist | Preferred™ Vertical |
| 26 | Cabinet Accessible Drain Valve | Yes |
| 27 |
Spa Cover : Weather Shield Colors: Grey, Dark Brown, Black |
5"-3" Weather Shield |
| 28 | Warranty (Structural) | 10 Years |
| 29 | Warranty (Finish) | 7 Years |
| 30 | Warranty (Parts) | 5 Years |
| 31 | Warranty (Labor) | 5 Years |
| 32 | Warranty (Cabinet) | 5 Years |
